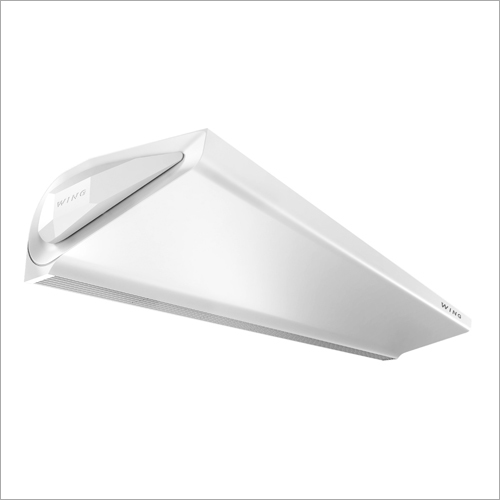

EC Motor Wing Air Curtains
Product Details:
- Frequency 50 Hertz (HZ)
- Material Metal
- Mounting Wall/Window Mount
- Voltage 220 to 415 Volt (v)
- Supply Ability : 50-100 Piece Per Month
Price And Quantity
- 23000 INR/Piece
- 1 Piece
Product Specifications
- 50 Hertz (HZ)
- Wall/Window Mount
- Metal
- 220 to 415 Volt (v)
Trade Information
- 50-100 Piece Per Month
- 2 Week
- All India
Product Description
We are a recognized company providing an assortment of EC Motor Wing Air Curtain. It is very suitable for to be used between Air-conditioned room to adjoining room. Our provided curtains are mainly used in different industries, Hotels, Showrooms & Hospitals. We use premium quality raw material and leading edge technology in the manufacturing process of this curtains. In addition to this, we have hired some of the professional quality controllers to test this EC Motor Wing Air Curtain on the base of different per-set parameters.
Technical Parameter :
| Parameters | Unit | Ambient Curtain | |||||
| Wing C100 | Wing C150 | Wing C200 | |||||
| AC | EC | AC | EC | AC | EC | ||
| VTS Item No. |
| 1-4-2801-0041 | 1-4-2801-0061 | 1-4-2801-0042 | 1-4-2801-0062 | 1-4-2801-0043 | 1-4-2801-0063 |
| Maximum door width (1 devices) | m | 1 | 1,5 | 2 | |||
| Maximum door height vertical stream range) | m | 4 | |||||
| Maximum exhaust flow rate | m3/h | 1950 | 3200 | 4600 | |||
| Supply voltage | V/ph/Hz | ~230/1/50 | |||||
| Motor power | kw | 0,235 | 0,2 | 0,375 | 0,3 | 0,58 | 0,45 |
| Rated current | A | 1,2 | 1,1 | 1,7 | 1,3 | 2,6 | 1,9 |
| Weight | kg | 20,5 | 19 | 27,5 | 25,5 | 34,5 | 32,5 |
| Protection rating | IP | 20 | |||||
| Max. velocity | M/s | 11 | |||||
| Casing colour | RAL | RAL 9016, outlet grid : ral 9022 | |||||
Wing C100, C150, C200 (AMBIENT CURTAIN)
| Fan speed | Wing C100 | Wing C 150 | Wing C200 | ||||||
| I | II | III | I | II | III | I | II | III | |
| Qp(m3/h) | 1050 | 1500 | 1950 | 1500 | 2250 | 3200 | 2340 | 3400 | 4600 |
| Db (A) | 53 | 59 | 62 | 54 | 62 | 63 | 57 | 61 | 63 |
