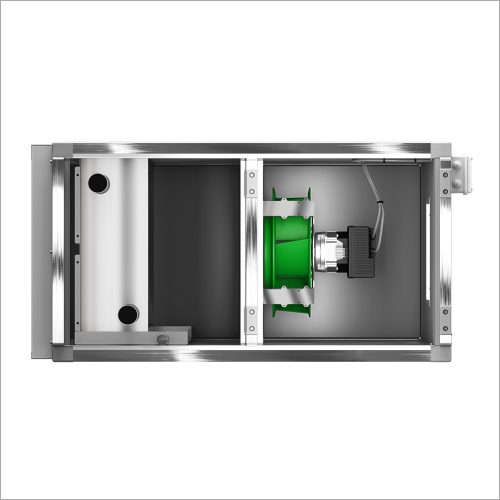

8500 CMH EC Motor Suspended Air Handling Units

8500 CMH EC Motor Suspended Air Handling Units
8500 CMH EC Motor Suspended Air Handling Units
Send Inquiry
Product Code : 04
Price And Quantity
  • Minimum Order Quantity
  • 1 Piece
  • Price
  • 23000 Onwards INR/Piece
Product Specifications
  • Frequency
  • 50 Hertz (HZ)
  • Material
  • Metal
  • Mounting
  • Ceiling Mount
  • Voltage
  • 220 to 415 Volt (v)
  • Warranty
  • 1 Year
Product Description

Technical Details:

Casing :

  • 40 mm 'Sandwich' double skin panels made of rigid polyurethane foam
  • Inspection panels mounted on AHU side
  • High anti-corrosive protection :
  • - Galvanized zinc (Zn) coating: 180g/m²
  • - External protection coating material thickness: polyester / 25μm
  • Inspection panels on both sides

Air Filters

  • Pleated filtration fabric shielded by steel net, installed in 50 mm thick frame
  • Filtration fabric made of polyester fibres
  • Working max parameters: max temperature (+70)°C, max. RH100%
  • ISO Coarse 75% (ISO 16890) - G4 (EN779)

Cooling Coil

  • Hydronic coils - 4, 6 rows available
  • DX - 6 rows, 2 sections available
  • Max operating pressure - 1,6 MPa
  • Testing pressure - 2,1 MPa
  • Drain tray: stainless steel, water outlet 1

Direct Drive Plug Fan Set Blower

  • Single inlet, radial, backward curved, free running fan
  • Direct drive- fan impeller installed directly on motor shaft
  • Fan section consisting of single or twin fans
  • Smooth regulation

DIRECT DRIVE PLUG FAN SET AC MOTORS

  • Fan and motor mounted on common housing, separated from AHU casing by set of rubber vibration absorbing mounts
  • Motors of TEFS (Totally Enclosed, Fan-Cooled)
  • Variable Frequency Drive (VFD) standard part of the fan-set
  • Available Energy classes: IE2
  • Junction box on casing

DIRECT DRIVE PLUG FAN SET EC MOTORS

  • Set of fan and motor mounted on common rail, fixed to the AHU fan diaphragm.
  • EC motors are Permanent Magnet motor, characterised by much higher efficiency vs traditional inductive
  • AC motors.
  • Required regulation with 0-10V regulator or ModBus signal
  • Junction box on casing

Technical Specification :

Unit size

Dimensions (mm)

Duct Connection

FAN

Motor Rated Output

Weight

H

W

L

HxW

Model [-]

[kW]

[kg]

SVS-35

530

1130

1120

210 x 700

VS 315

1,5

106

SVS-50

595

1300

1120

310x550

VS 355

1,5

124

SVS-70

530

2000

1120

310x1200

VS 315 x 2

1,5 x 2

181

SVS-85

655

2000

1120

410x1400

VS 400 x 2

1,5 x 2

205

SVS-100

655

2200

1120

410x1400

VS 400 x 2

1,5 x 2

220


Unit size

Min Air Flow

Max Air Flow

CMH

CFM

CMH

CFM

SVS-35

1500

883

3500

2060

SVS-50

2100

1236

4500

2660

SVS-70

3000

1766

7000

4120

SVS-85

3400

2001

8500

5003

SVS-100

4200

2472

9500

5621


Unit size

Coil Volume

Coil connections

WCL4R

WCL6R

DX6R

WCL4R, WCL6R

DX6R

(Liters)

ΦDin

ΦDout

ΦDin

ΦDout

SVS-35

6,33

9,5

9,5

DN32

DN32

2X5/8

2XØ28

SVS-50

8,24

12,36

12,36

DN50

DN50

2XØ22

2XØ35

SVS-70

12,08

18,13

18,13

DN50

DN50

2XØ22

2XØ35

SVS-85

15,44

23,16

23,16

DN50

DN50

2XØ22

2XØ35

SVS-100

17,23

25,84

25,84

DN50

DN50

2XØ22

2XØ42

Trade Information
  • Supply Ability
  • 100 Piece Per Month
  • Delivery Time
  • 2 Week
  • Main Domestic Market
  • All India
